基于Compute Shader的高斯模糊

com.qstx.rendererfeature

---

仓库地址

注意：本文使用的是URP14，不同版本略有差异

A BiliBili video

一、 自定义RendererFeature的实现

简单自定义RandererFeature的实现可参考URP官方教程

比较重要的是需要单独实现自己的ScriptableRendererFeature类和ScriptableRenderPass类

ScriptableRendererFeature类

比较重要的方法：

• Create：初始化RendererFeature所需的资源，每次序列化时调用
• Dispose：释放申请的资源
• OnCameraPreCull：在渲染管线Cull之前的准备
• AddRenderPasses：向渲染管线中加入自定义Pass，会在每次渲染之前执行一次
• SetupRenderPasses：Render Target初始化完成后的回调，保证此时可以访问Render Target

ScriptableRenderPass类

比较重要的属性：

• renderPassEvent：决定Pass在渲染管线中的执行时机

比较重要的方法：

• Configure：在Pass执行前调用，用于配置Render Target的属性
• ConfigureClear：配置当前Pass Render Target的Clear标志，应在Configure中调用
• ConfigureTarget：配置当前Pass Render Target的Render Target，应在Configure中调用
• Execute：Pass真正的执行逻辑
• OnCameraSetup：相机开始渲染前调用，用于配置Render Target及其Clear标志
• OnCameraCleanup：相机结束渲染后调用，用于释放当前Pass创建的资源
• OnFinishCameraStackRendering：一个相机栈中所有相机渲染完成后调用，用于释放当前Pass申请但供相机栈中其他相机使用的资源

二、 基于Compute Shader实现高斯模糊效果

1. 指定输入输出参数：

//输出要求可写
RWTexture2D<float4> Result;
Texture2D<float4> InputTexture;

//需要模糊的像素半径
int BlurRadius;

2. 定义核函数

[numthreads(8, 8, 1)]
void GaussianBlurFull (uint3 id : SV_DispatchThreadID)
{
    float4 color = float4(0, 0, 0, 0);
    float weightSum = 0.0;

    for (int y = -BlurRadius; y <= BlurRadius; y++)
    {
        for (int x = -BlurRadius; x <= BlurRadius; x++)
        {
            float2 offset = float2(x, y);
            //根据距离求像素对目标像素的贡献权重
            float weight = exp(-(x * x + y * y) / (2.0 * (BlurRadius+1) * BlurRadius+1));
            color += InputTexture[id.xy + offset];
            weightSum += weight;
        }
    }
    //计算卷积后的最终颜色值，这个值包含了BlurRadius范围内所有像素的加权贡献
    Result[id.xy] = color / weightSum;
}

但是二维高斯函数又可以分为两个不同维度上一维的高斯函数的积，因此可以将执行复杂度从 $W*H*N*N$ 降低到 $(W+H)*N*N$

下面分别实现了水平方向高斯模糊和竖直方向高斯模糊的核函数

[numthreads(8, 8, 1)]
void GaussianBlurHorizontal (uint3 id : SV_DispatchThreadID)
{
    float4 color = float4(0, 0, 0, 0);
    float weightSum = 0.0;

    for (int x = -BlurRadius; x <= BlurRadius; x++)
    {
        float2 offset = float2(x, 0);
        float weight = exp(-(x * x) / (2.0 * (BlurRadius+1) * BlurRadius+1));
        color += InputTexture[id.xy + offset];
        weightSum += weight;
    }

    Result[id.xy] = color / weightSum;
}

[numthreads(8, 8, 1)]
void GaussianBlurVertical (uint3 id : SV_DispatchThreadID)
{
    float4 color = float4(0, 0, 0, 0);
    float weightSum = 0.0;

    for (int y = -BlurRadius; y <= BlurRadius; y++)
    {
        float2 offset = float2(0, y);
        float weight = exp(-(y * y) / (2.0 * (BlurRadius+1) * BlurRadius+1));
        color += InputTexture[id.xy + offset];
        weightSum += weight;
    }

    Result[id.xy] = color / weightSum;
}

三、 GaussianBlurPass的实现

1. 定义必要属性

    public ComputeShader computeShader;//用于执行高斯模糊的Compute Shader
    public int blurRadius = 5;
    public BlurMode blurMode = BlurMode.Full;//高斯模糊的方式，见下文GaussianBlurRendererFeature.BlurMode中的定义

    //用于中间渲染的临时Render Target
    private RenderTextureDescriptor tempDesc;
    private RTHandle tempTarget1;
    private RTHandle tempTarget2;

    private int horizontalKernalIdx = -1;
    private int verticalKernalIdx = -1;
    private int fullKernalIdx = -1;

2. 构造时获取成员属性的设置

    public GaussianBlurPass(ComputeShader shader)
    {
        computeShader = shader;
        renderPassEvent = RenderPassEvent.BeforeRenderingPostProcessing;//在后处理之前执行

        //确定不同方式的高斯模糊核函数
        horizontalKernalIdx = computeShader.FindKernel("GaussianBlurHorizontal");
        verticalKernalIdx = computeShader.FindKernel("GaussianBlurVertical");
        fullKernalIdx = computeShader.FindKernel("GaussianBlurFull");
    }

3. 每次执行渲染之前配置RT

  public override void Configure(CommandBuffer cmd, RenderTextureDescriptor cameraTextureDescriptor)
    {
        //保持与相机RT属性一致，但不需要深度且可写
        tempDesc = cameraTextureDescriptor;
        tempDesc.depthStencilFormat = GraphicsFormat.None;
        tempDesc.enableRandomWrite = true;

        //RT属性发生变化或RT还不存在时重新分配
        RenderingUtils.ReAllocateIfNeeded(ref tempTarget1, in tempDesc, name: "TempTarget1");
        if (blurMode == BlurMode.HorizontalAndVertical)
            RenderingUtils.ReAllocateIfNeeded(ref tempTarget2, in tempDesc, name: "TempTarget2");
    }

4. 执行渲染

    public override void Execute(ScriptableRenderContext context, ref RenderingData renderingData)
    {
        //确定执行的核函数
        int curKernelIdx = -1;
        switch (blurMode)
        {
            case BlurMode.Full:
                curKernelIdx = fullKernalIdx;
                break;
            case BlurMode.Horizontal:
            case BlurMode.HorizontalAndVertical:
                curKernelIdx = horizontalKernalIdx;
                break;
            case BlurMode.Vertical:
                curKernelIdx = verticalKernalIdx;
                break;
        }

        CommandBuffer cmd = CommandBufferPool.Get("Gaussian Blur");
        var src = renderingData.cameraData.renderer.cameraColorTargetHandle;

        //向Command Buffer中提交绘制
        // Dispatch the compute shader
        cmd.SetComputeTextureParam(computeShader, curKernelIdx, "InputTexture", src);
        cmd.SetComputeTextureParam(computeShader, curKernelIdx, "Result", tempTarget1);
        cmd.SetComputeFloatParam(computeShader, "BlurRadius", blurRadius);
        cmd.DispatchCompute(computeShader, curKernelIdx,
            Mathf.CeilToInt(renderingData.cameraData.cameraTargetDescriptor.width / 8.0f),
            Mathf.CeilToInt(renderingData.cameraData.cameraTargetDescriptor.height / 8.0f), 1);

        //如果是分两个阶段执行二维高斯模糊，需要继续运行第二个核函数
        if (blurMode == BlurMode.HorizontalAndVertical)
        {
            // Dispatch the compute shader
            cmd.SetComputeTextureParam(computeShader, verticalKernalIdx, "InputTexture", tempTarget1);
            cmd.SetComputeTextureParam(computeShader, verticalKernalIdx, "Result", tempTarget2);
            cmd.SetComputeFloatParam(computeShader, "BlurRadius", blurRadius);
            cmd.DispatchCompute(computeShader, verticalKernalIdx,
                Mathf.CeilToInt(renderingData.cameraData.cameraTargetDescriptor.width / 8.0f),
                Mathf.CeilToInt(renderingData.cameraData.cameraTargetDescriptor.height / 8.0f), 1);

            cmd.Blit(tempTarget2, src);//将结果写回相机
        }
        else
        {
            cmd.Blit(tempTarget1, src);//将结果写回相机
        }

        //提交Command Buffer
        context.ExecuteCommandBuffer(cmd);
        CommandBufferPool.Release(cmd);
    }

5. 释放资源

    public void Dispose()
    {
        tempTarget1?.Release();
        tempTarget2?.Release();
    }

四、 GaussianBlurRendererFeature的实现

1. 定义必要属性

开放所需的Compute Shader等属性，以便于在面板上设置

    [System.Serializable]
    public enum BlurMode
    {
        Horizontal,
        Vertical,
        HorizontalAndVertical,
        Full,
    }

    [System.Serializable]
    public class Settings
    {
        [Range(0,100)]public int blurRadius = 5;
        public BlurMode blurMode = BlurMode.Full;
    }

    public Settings settings = new Settings();
    public ComputeShader computeShader;

    private GaussianBlurPass blurPass;

2. 创建Pass

    public override void Create()
    {
        blurPass = new GaussianBlurPass(settings.computeShader);
    }

3. 提交Pass

    public override void AddRenderPasses(ScriptableRenderer renderer, ref RenderingData renderingData)
    {
        if (settings.computeShader == null)
        {
            Debug.LogError("Compute Shader is missing!");
            return;
        }

        blurPass.computeShader = settings.computeShader;
        blurPass.blurRadius = settings.blurRadius;
        blurPass.blurMode = settings.blurMode;

        renderer.EnqueuePass(blurPass);
    }

4. 释放资源

    protected override void Dispose(bool disposing)
    {
        blurPass.Dispose();
    }

五、 执行效果

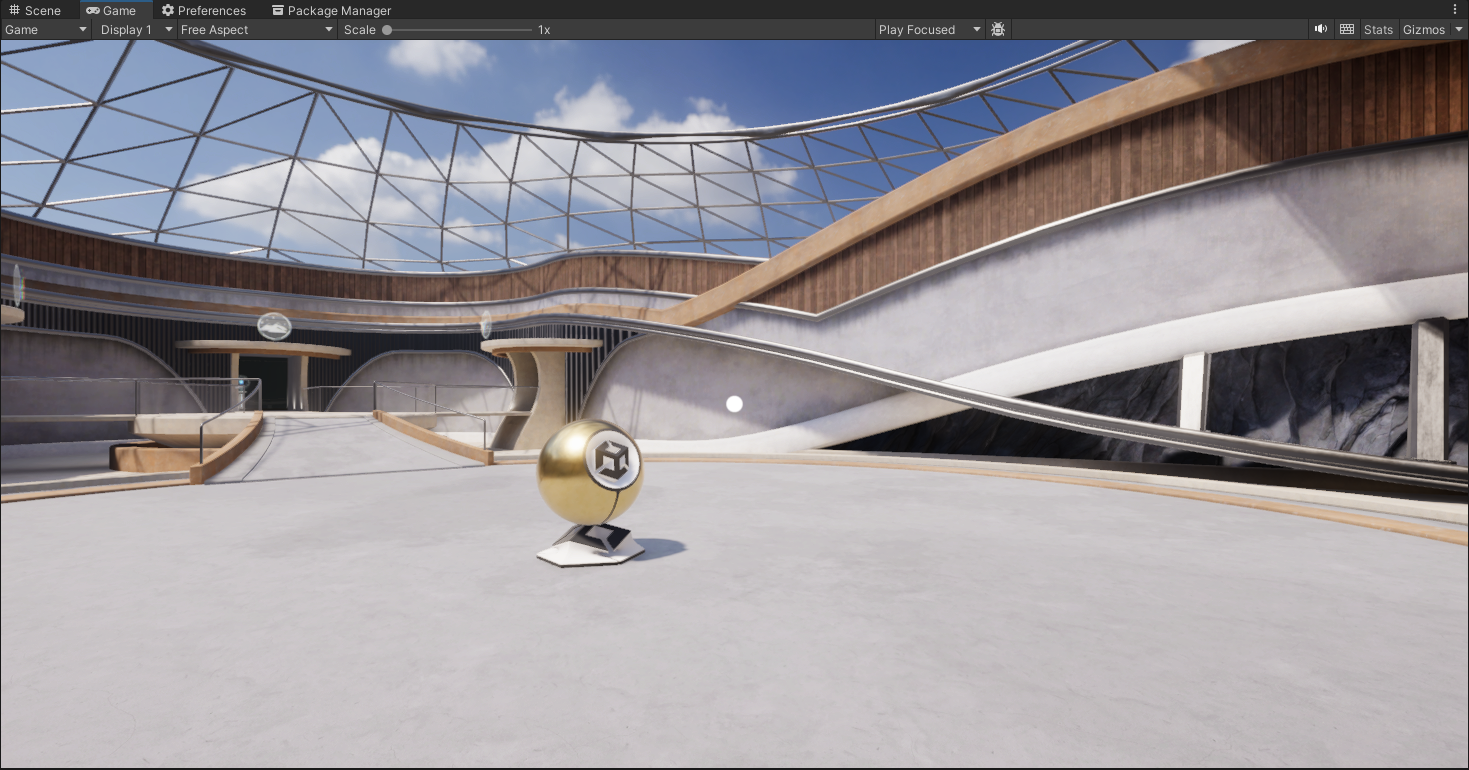

原图

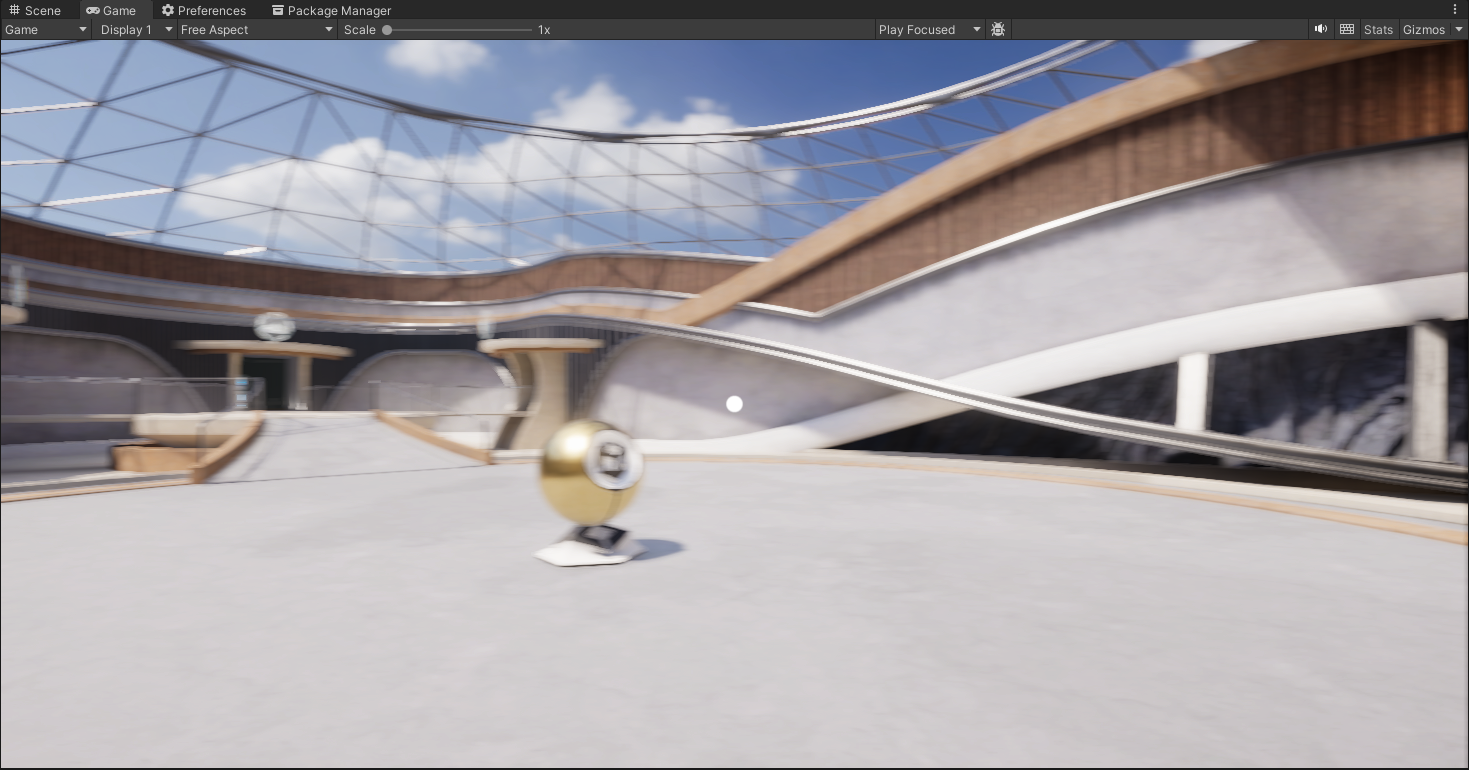

水平模糊

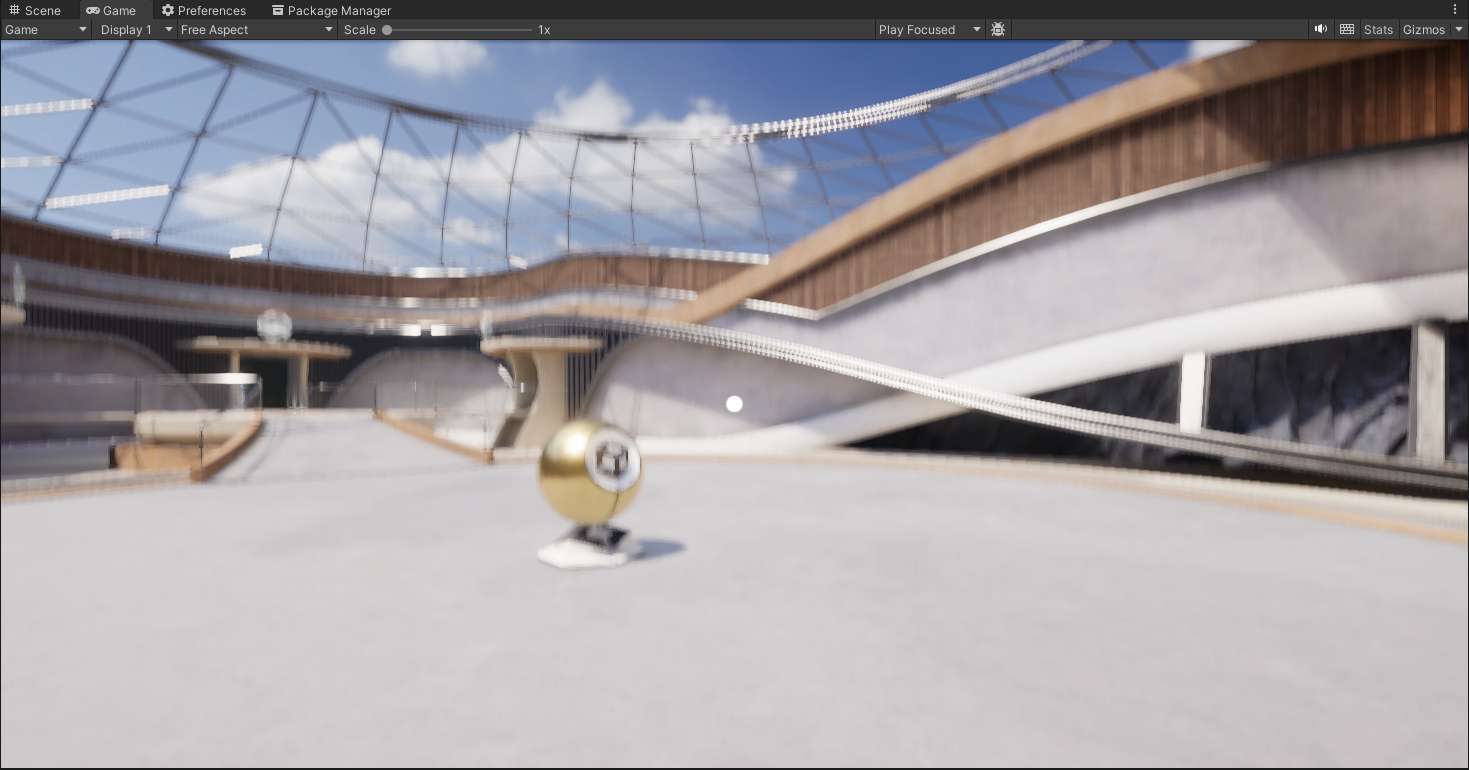

竖直模糊

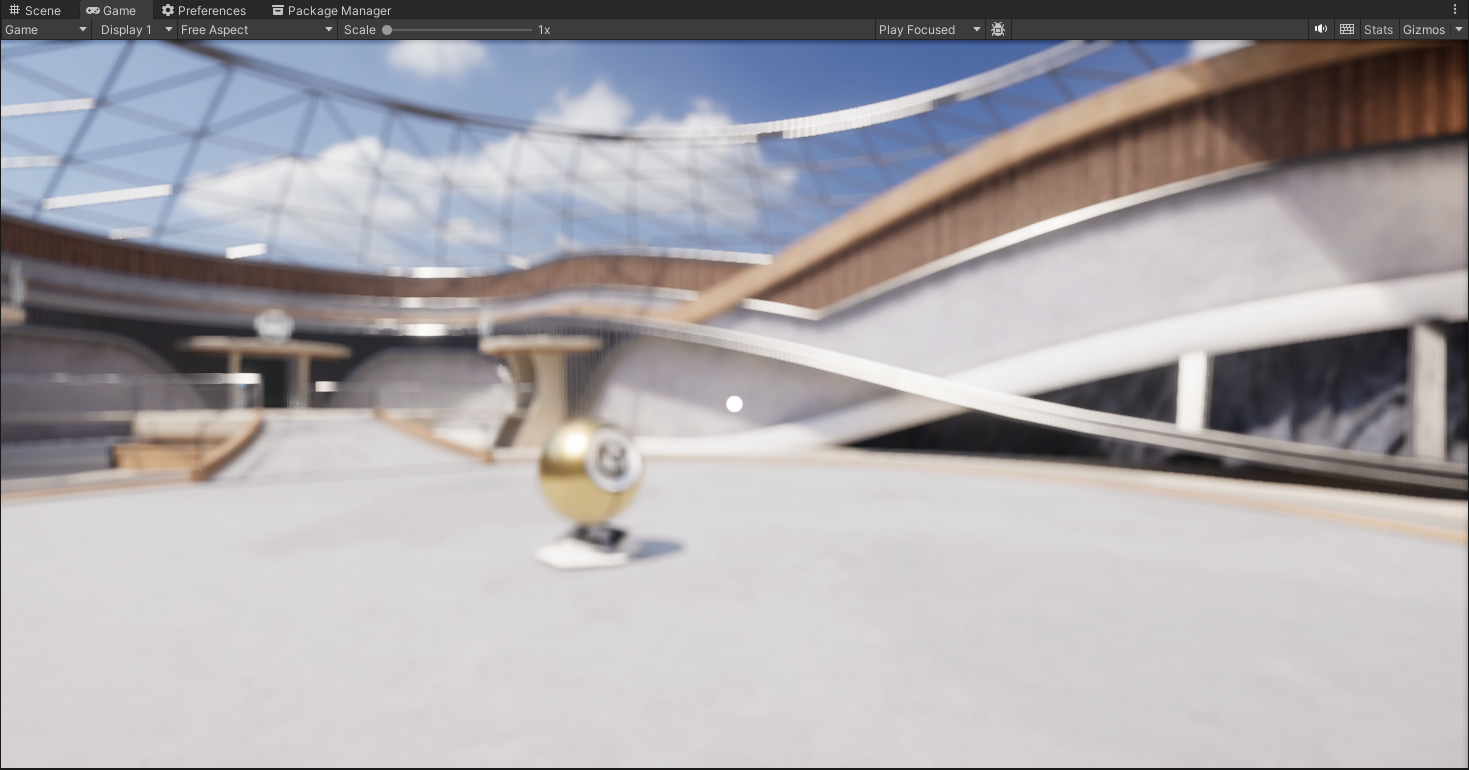

先水平再竖直模糊

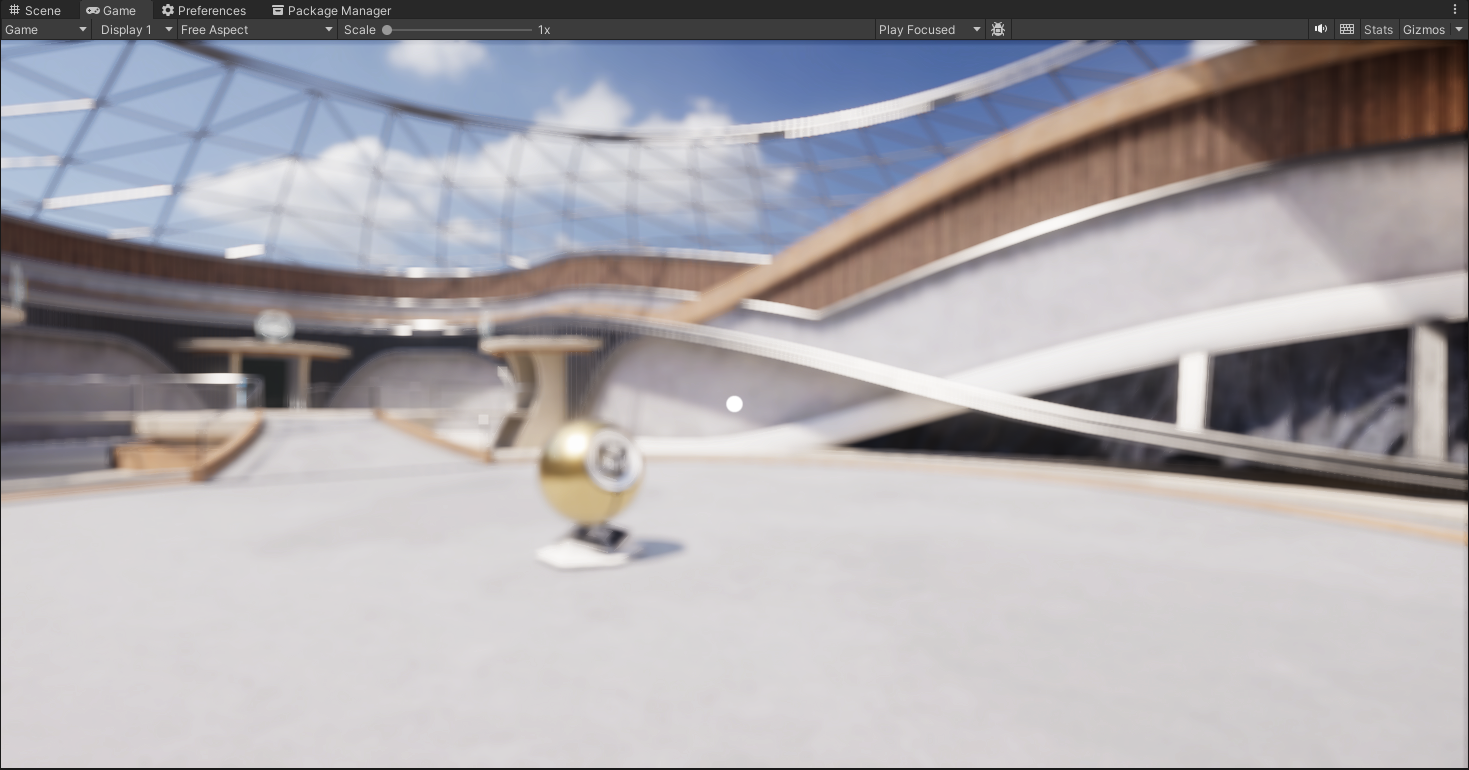

二维卷积模糊

重要

两个一维高斯模糊比一个二维高斯模糊更优，但效果并无差异。

将模糊半径设置为60：

• 先水平再竖直模糊，平均帧率为275FPS
• 二维卷积模糊，平均帧率为24FPS

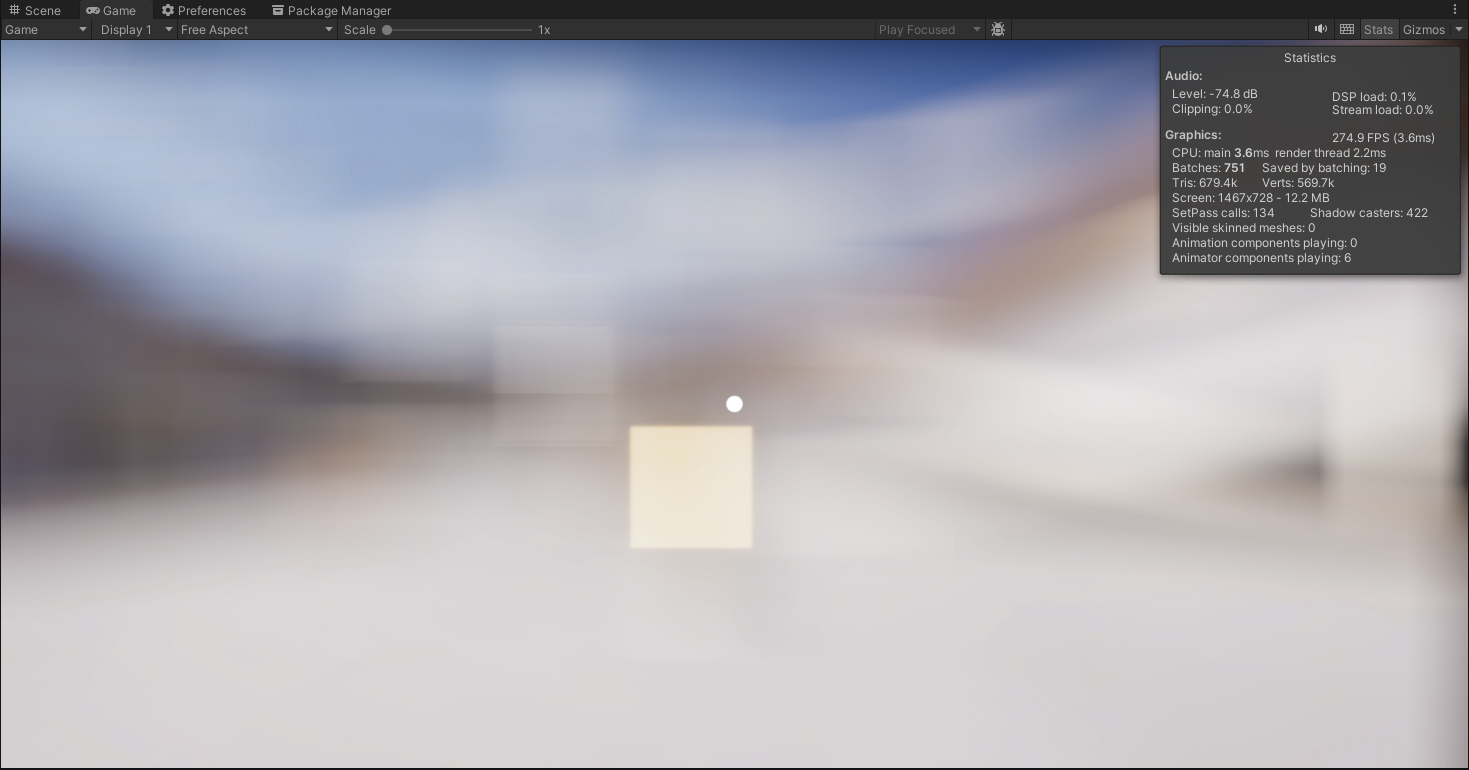

先水平再竖直模糊

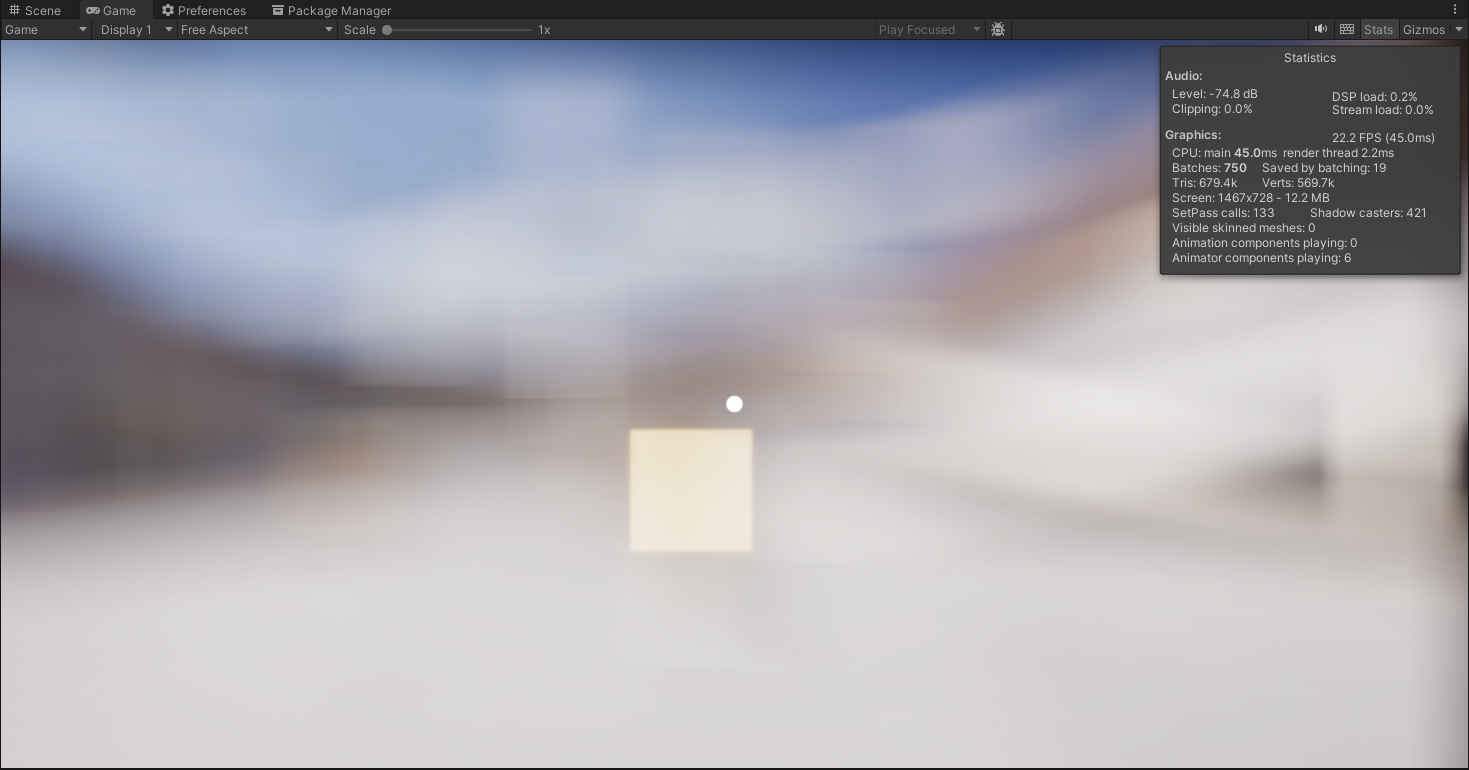

二维卷积模糊
